House Bill of Lading (HBL)¶
User Story¶
As an Ocean Export operator, I want to create and validate HBL records linked to an existing MBL so that customer-level shipment details are accurate and ready for document issuance.
Form Sections¶
- Parties
- Routing & Service
- Cargo & Commercial
- Freight & B/L Status
- Container & Cargo
UI Evidence¶
New HBL form opened under a seeded MBL — MBL banner visible at top, all HBL fields below.

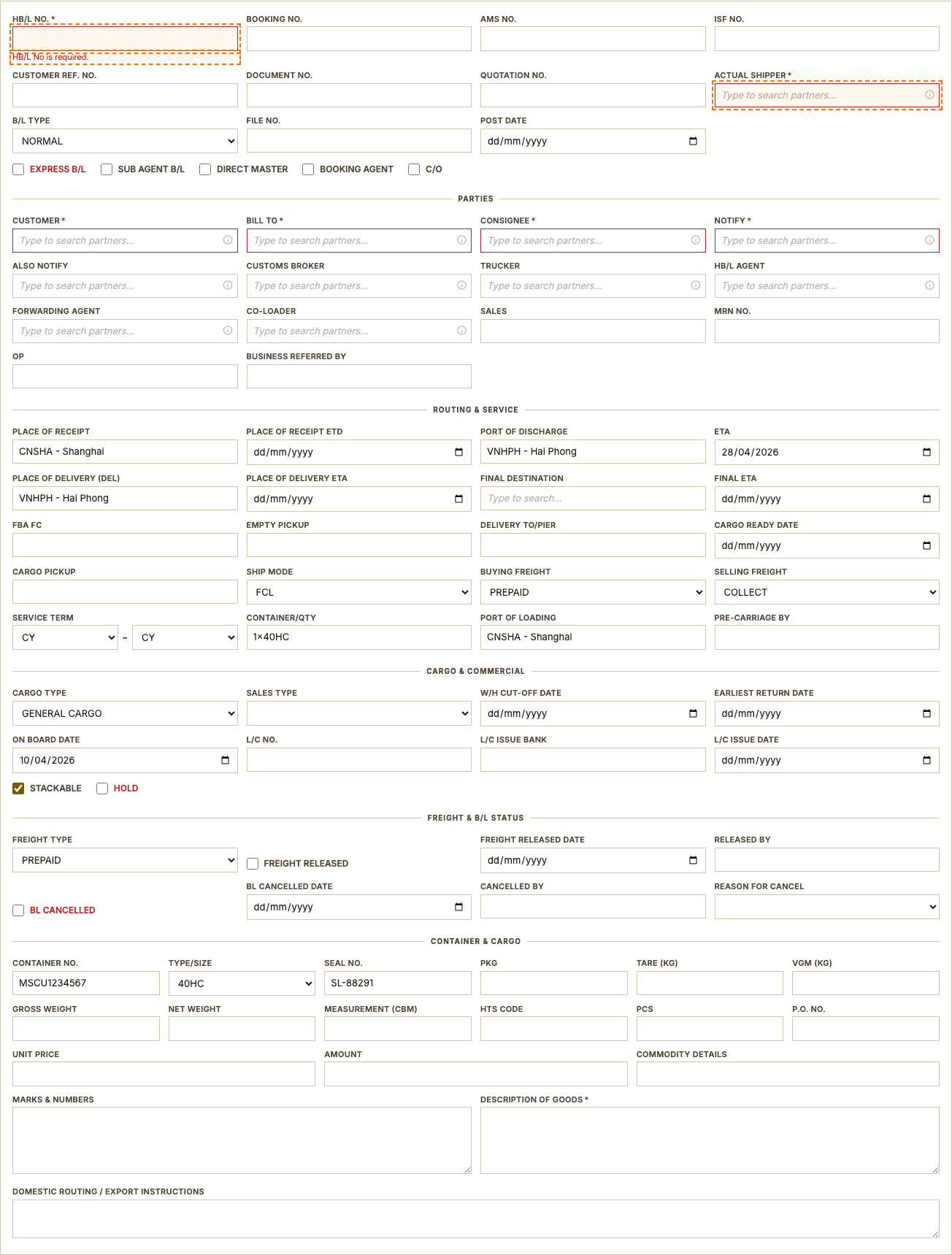

Submit empty HBL form to capture required-field error state.
Acceptance Criteria¶
- User can navigate to the list and open the create form without a UI error or blank screen.
- All form sections (Identification, Vessel & Routing, Freight & Service, Container & Item Summary) are rendered and scrollable.
- Submitting the form with empty required fields shows inline error messages without a page reload.
- A valid record can be saved and the system redirects to the detail/list view with the new record visible.
- All dropdown (select) options match the values defined in the application constants.
- Date fields only accept valid date input (ISO YYYY-MM-DD) and do not accept free-form text.
Validation Rules¶
- Actual Shipper* (
name="actual_shipper_id") must not be empty; form must block submission and highlight the field with an error message.
Field Semantics¶
| Label | Name | Required | Business Meaning | Allowed Values / Format | Data Source / Reference |
|---|---|---|---|---|---|
| HB/L No.* | hbl_no | No | System-generated House BL number. This field is read-only and assigned automatically by the application. | System-generated (read-only) | Generated and maintained by the application; not entered by users. |
| Booking No. | booking_no | No | The booking or reservation reference number assigned at the time the space was confirmed. | Free text | Entered directly by the user and stored in the shipment record. |
| AMS No. | ams_no | No | Automated Manifest System (AMS) filing number submitted to U.S. Customs. Required for all cargo destined for or transiting through the United States. | Free text | Entered directly by the user and stored in the shipment record. |
| ISF No. | isf_no | No | Importer Security Filing (ISF / 10+2) number filed with U.S. Customs. Must be submitted at least 24 hours before cargo is loaded at origin. | Free text | Entered directly by the user and stored in the shipment record. |
| Customer Ref. No. | customer_ref_no | No | The customer's own internal reference number for this shipment, for their records. | Free text | Entered directly by the user and stored in the shipment record. |
| Document No. | document_no | No | Soleil's internal document control number assigned to this House BL. | Free text | Entered directly by the user and stored in the shipment record. |
| Quotation No. | quotation_no | No | The sales quotation number that was accepted and led to this booking. | Free text | Entered directly by the user and stored in the shipment record. |
| Actual Shipper* | actual_shipper_id | No | The company or individual physically shipping the goods — the exporter of record on customs documents. | Free text | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| B/L Type | bl_type | No | Defines the commercial arrangement for how this Bill of Lading is structured and billed — e.g., whether it is a direct shipment, a consolidation, or a co-load. | CARRIER BUYER CONSOL, CO-LOAD, CONSOL, DIRECT, DIRECT TRIANGLE, FORWARDING, NORMAL, THIRD PARTY, TRIANGLE | Fixed dropdown list configured in the application. |
| File No. | file_no | No | System-generated value. This field is read-only and populated by the application. | System-generated (read-only) | Generated and maintained by the application; not entered by users. |
| Post Date | post_date | No | The date this document is officially recorded in the system. Defaults to today. | Date (YYYY-MM-DD) | Entered directly by the user and stored in the shipment record. |
| Express B/L | express_bl | No | Express B/L. | Yes / No | Entered directly by the user and stored in the shipment record. |
| Sub Agent B/L | sub_agent_bl | No | Sub Agent B/L. | Yes / No | Entered directly by the user and stored in the shipment record. |
| Direct Master | direct_master | No | Indicates that this shipment moves directly under a master BL without co-loading or consolidation with other cargo. | Yes / No | Entered directly by the user and stored in the shipment record. |
| Booking Agent | booking_agent | No | Check this box if the booking was arranged through an agent rather than placed directly with the carrier. | Yes / No | Entered directly by the user and stored in the shipment record. |
| C/O | co_flag | No | Check this box if a Certificate of Origin is required for this shipment. | Yes / No | Entered directly by the user and stored in the shipment record. |
| Customer* | customer_id | No | The Soleil customer account responsible for this shipment. Typically the party that signed the service agreement. | Free text | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Bill To* | bill_to_id | No | The party to be invoiced for Soleil's services. May be different from the customer if a third party is covering freight costs. | Free text | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Consignee* | consignee_id | No | The party designated to receive the cargo at the destination. Their name appears on the Bill of Lading and customs entry. | Free text | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Notify* | notify_party_id | No | The party to be notified when the cargo arrives at the destination port. Typically the consignee or their broker. | Free text | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Also Notify | also_notify_id | No | An additional party to receive arrival notifications, in addition to the primary notify party. | Free text | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Customs Broker | customs_broker_id | No | The licensed customs broker handling import clearance at the destination port. | Free text | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Trucker | trucker_id | No | The trucking company responsible for inland pickup or delivery of the cargo. | Free text | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| HB/L Agent | hbl_agent_id | No | The agent responsible for issuing the House BL and managing the documentation at destination. | Free text | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Forwarding Agent | forwarding_agent_id | No | The freight forwarder coordinating the shipment on behalf of the shipper. | Free text | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Co-loader | co_loader_id | No | The co-loading partner that shares container space on this shipment. | Free text | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Sales | sales | No | The Soleil sales representative who brought in this business and is responsible for the customer relationship. | Free text | Entered directly by the user and stored in the shipment record. |
| MRN No. | mrn_no | No | Movement Reference Number assigned by customs authorities for the export declaration. | Free text | Entered directly by the user and stored in the shipment record. |
| OP | op | No | The operations staff member assigned as the primary handler for this shipment. | Free text | Entered directly by the user and stored in the shipment record. |
| Business Referred By | business_referred_by | No | The person or company who referred this customer or shipment to Soleil. | Free text | Entered directly by the user and stored in the shipment record. |
| Place of Receipt | place_of_receipt | No | The location where Soleil or its agent takes custody of the cargo from the shipper — the starting point of Soleil's responsibility. | Free text | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Place of Receipt ETD | place_of_receipt_etd | No | Estimated departure date from the place of receipt (inland origin). | Date (YYYY-MM-DD) | Entered directly by the user and stored in the shipment record. |
| Port of Discharge | port_of_discharge | No | The seaport where the cargo is unloaded from the vessel. | Free text | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| ETA | eta | No | Estimated arrival date of the vessel at the port of discharge. | Date (YYYY-MM-DD) | Entered directly by the user and stored in the shipment record. |
| Place of Delivery (DEL) | place_of_delivery | No | The final delivery point where Soleil hands over the cargo to the consignee. | Free text | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Place of Delivery ETA | place_of_delivery_eta | No | Estimated arrival date at the final delivery location. | Date (YYYY-MM-DD) | Entered directly by the user and stored in the shipment record. |
| Final Destination | final_destination | No | The ultimate end destination of the cargo, which may be further inland beyond the port of delivery. | Free text | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Final ETA | final_eta | No | Estimated arrival date at the final destination. | Date (YYYY-MM-DD) | Entered directly by the user and stored in the shipment record. |
| FBA FC | fba_fc | No | Amazon Fulfillment Center code — the specific warehouse destination code for shipments going to Amazon FBA. | Free text | Entered directly by the user and stored in the shipment record. |
| Empty Pickup | empty_pickup | No | The depot or location where the shipper picks up the empty container before stuffing. | Free text | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Delivery To/Pier | delivery_to_pier | No | The terminal or pier location where the loaded container is delivered for vessel loading. | Free text | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Cargo Ready Date | cargo_ready_date | No | The date the cargo will be ready at the shipper's facility for pickup or delivery to the warehouse. | Date (YYYY-MM-DD) | Entered directly by the user and stored in the shipment record. |
| Cargo Pickup | cargo_pickup | No | Cargo Pickup. | Free text | Entered directly by the user and stored in the shipment record. |
| Ship Mode | ship_mode | No | The type of cargo arrangement for this shipment — how the container or cargo space is booked. | FCL, LCL, BULK, RORO | Fixed dropdown list configured in the application. |
| Buying Freight | buying_freight | No | Freight payment terms for what Soleil pays to the carrier or co-loader for this shipment (our cost side). | PREPAID, COLLECT, OTHER | Fixed dropdown list configured in the application. |
| Selling Freight | selling_freight | No | Freight payment terms for what the customer pays to Soleil (our revenue side). | PREPAID, COLLECT, OTHER | Fixed dropdown list configured in the application. |
| Service Term | svc_term_origin | No | Defines the scope of Soleil's service at the origin — the point from which Soleil takes responsibility for the cargo. | CY, CFS, DOOR | Fixed dropdown list configured in the application. |
| Service Term | svc_term_dest | No | Defines the scope of Soleil's service at the destination — the point until which Soleil is responsible for the cargo. | CY, CFS, DOOR | Fixed dropdown list configured in the application. |
| Container/Qty | container_qty | No | The total number of containers booked on this shipment. | Free text | Entered directly by the user and stored in the shipment record. |
| Port of Loading | port_of_loading | No | The seaport where the cargo is loaded onto the ocean vessel. | Free text | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Pre-carriage By | pre_carriage_by | No | The mode of transport (truck, rail, feeder vessel) used to move cargo from the place of receipt to the port of loading. | Free text | Entered directly by the user and stored in the shipment record. |
| Cargo Type | cargo_type | No | The category of goods being shipped — determines handling requirements, storage conditions, and regulatory documentation needed. | GENERAL CARGO, DANGEROUS GOODS, REFRIGERATED, BREAK BULK, OVERSIZED, VEHICLES | Fixed dropdown list configured in the application. |
| Sales Type | sales_type | No | The commercial direction of this shipment, used for sales performance tracking and reporting. | EXPORT, IMPORT, CROSS TRADE, DOMESTIC | Fixed dropdown list configured in the application. |
| W/H Cut-Off Date | wh_cut_off_date | No | The deadline for delivering cargo to Soleil's consolidation warehouse. | Date (YYYY-MM-DD) | Entered directly by the user and stored in the shipment record. |
| Earliest Return Date | earliest_return_date | No | The earliest date the carrier will accept empty container returns to the depot after delivery. | Date (YYYY-MM-DD) | Entered directly by the user and stored in the shipment record. |
| On Board Date | on_board_date | No | The date the cargo was physically loaded and confirmed on board the vessel. | Date (YYYY-MM-DD) | Entered directly by the user and stored in the shipment record. |
| L/C No. | lc_no | No | The Letter of Credit number if payment for this shipment is settled through a bank Letter of Credit. | Free text | Entered directly by the user and stored in the shipment record. |
| L/C Issue Bank | lc_issue_bank | No | The bank that issued the Letter of Credit. | Free text | Entered directly by the user and stored in the shipment record. |
| L/C Issue Date | lc_issue_date | No | The date the Letter of Credit was issued by the bank. | Date (YYYY-MM-DD) | Entered directly by the user and stored in the shipment record. |
| Stackable | stackable | No | Indicates whether this cargo or container may be stacked on top of or underneath other cargo during storage or transport. | Yes / No | Entered directly by the user and stored in the shipment record. |
| Hold | hold | No | Flags this shipment as on financial or operational hold. Shipment cannot proceed until the hold is released by an authorized staff member. | Yes / No | Entered directly by the user and stored in the shipment record. |
| Freight Type | freight_type | No | Indicates who pays the ocean freight charges — the shipper (Prepaid) or the consignee (Collect). | PREPAID, COLLECT | Fixed dropdown list configured in the application. |
| Freight Released | freight_released | No | Indicates that all outstanding freight charges have been paid and the BL has been approved for cargo release. | Yes / No | Entered directly by the user and stored in the shipment record. |
| Freight Released Date | freight_released_date | No | The date on which freight release was confirmed. | Date (YYYY-MM-DD) | Entered directly by the user and stored in the shipment record. |
| Released By | released_by | No | The staff member who approved and confirmed freight release. | Free text | Entered directly by the user and stored in the shipment record. |
| BL Cancelled | bl_cancelled | No | Marks this Bill of Lading as cancelled. A cancelled BL cannot be used for shipping or customs clearance. | Yes / No | Entered directly by the user and stored in the shipment record. |
| BL Cancelled Date | bl_cancelled_date | No | The date this BL was officially cancelled. | Date (YYYY-MM-DD) | Entered directly by the user and stored in the shipment record. |
| Cancelled By | cancelled_by | No | The name of the staff member who authorized the cancellation. | Free text | Entered directly by the user and stored in the shipment record. |
| Reason for Cancel | reason_for_cancel | No | The business reason for cancelling this Bill of Lading, used for audit and reporting purposes. | CUSTOMER REQUEST, DUPLICATE, AMENDMENT, OTHER | Fixed dropdown list configured in the application. |
| Container No. | container_no | No | The ISO container identification number printed on the container door (e.g. MSCU1234567). | Free text | Entered directly by the user and stored in the shipment record. |
| Type/Size | container_size | No | The container equipment type and physical size used for this shipment. | 20GP, 40GP, 40HC, 45HC, 20RF, 40RF | Fixed list — container equipment codes per ISO standards. |
| Seal No. | seal_no | No | The seal number applied to the container door after loading. Required for customs verification and cargo security. | Free text | Entered directly by the user and stored in the shipment record. |
| PKG | number_of_packages | No | Total count of individual packages, boxes, cartons, pallets, or other shipping units. | Free text | Entered directly by the user and stored in the shipment record. |
| Tare (KG) | tare_weight | No | The weight of the empty container itself, as stamped on the container door panel. | Free text | Entered directly by the user and stored in the shipment record. |
| VGM (KG) | vgm | No | Verified Gross Mass — the total certified weight of the loaded container, required by SOLAS international maritime regulations. | Free text | Entered directly by the user and stored in the shipment record. |
| Gross Weight | gross_weight | No | Total weight of the cargo plus all packaging, pallets, and wrapping. | Free text | Entered directly by the user and stored in the shipment record. |
| Net Weight | net_weight | No | Weight of the cargo alone, excluding all packaging materials. | Free text | Entered directly by the user and stored in the shipment record. |
| Measurement (CBM) | measurement | No | Total volume of the shipment in cubic meters (CBM). | Free text | Entered directly by the user and stored in the shipment record. |
| HTS Code | hts_code | No | Harmonized Tariff Schedule (HTS) code — the international customs classification code for the goods being shipped. | Free text | Entered directly by the user and stored in the shipment record. |
| PCS | pcs | No | Total number of individual pieces in this shipment. | Free text | Entered directly by the user and stored in the shipment record. |
| P.O. No. | po_no | No | The buyer's Purchase Order number associated with this shipment, for cross-referencing with the customer's procurement records. | Free text | Entered directly by the user and stored in the shipment record. |
| Unit Price | unit_price | No | Unit price of the goods, used for commercial invoice preparation and customs valuation. | Free text | Entered directly by the user and stored in the shipment record. |
| Amount | amount | No | Total commercial value of the goods on this shipment. | Free text | Entered directly by the user and stored in the shipment record. |
| Commodity Details | commodity_details | No | Detailed description of the product including specifications, brand, model, or other identifying information. | Free text | Entered directly by the user and stored in the shipment record. |
| Marks & Numbers | marks_numbers | No | Shipping marks and package identification numbers printed on the cargo as they must appear on the Bill of Lading. | Free text (multi-line) | Entered directly by the user and stored in the shipment record. |
| Description of Goods* | description_of_goods | No | The official cargo description as it will appear on the Bill of Lading and customs documents. Must be accurate and comply with carrier and customs requirements. | Free text (multi-line) | Entered directly by the user and stored in the shipment record. |
| Domestic Routing / Export Instructions | domestic_routing | No | Inland transportation instructions for moving cargo within the country of origin, such as truck pickup details or inland depot routing. | Free text (multi-line) | Entered directly by the user and stored in the shipment record. |
Reference Data & Enum Catalog¶
| Label | Name | Enum / Lookup Values | Source |
|---|---|---|---|
| Actual Shipper | actual_shipper_id | Lookup — see Data Source | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| B/L Type | bl_type | CARRIER BUYER CONSOL, CO-LOAD, CONSOL, DIRECT, DIRECT TRIANGLE, FORWARDING, NORMAL, THIRD PARTY, TRIANGLE | Fixed dropdown list configured in the application. |
| Customer | customer_id | Lookup — see Data Source | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Bill To | bill_to_id | Lookup — see Data Source | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Consignee | consignee_id | Lookup — see Data Source | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Notify | notify_party_id | Lookup — see Data Source | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Also Notify | also_notify_id | Lookup — see Data Source | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Customs Broker | customs_broker_id | Lookup — see Data Source | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Trucker | trucker_id | Lookup — see Data Source | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| HB/L Agent | hbl_agent_id | Lookup — see Data Source | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Forwarding Agent | forwarding_agent_id | Lookup — see Data Source | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Co-loader | co_loader_id | Lookup — see Data Source | Trade Partner lookup — internal partner database (GET /trade-partners/). Search by company name or partner code. New partners must be created in the Trade Partners module first. |
| Place of Receipt | place_of_receipt | Lookup — see Data Source | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Port of Discharge | port_of_discharge | Lookup — see Data Source | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Place of Delivery (DEL) | place_of_delivery | Lookup — see Data Source | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Final Destination | final_destination | Lookup — see Data Source | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Empty Pickup | empty_pickup | Lookup — see Data Source | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Delivery To/Pier | delivery_to_pier | Lookup — see Data Source | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Ship Mode | ship_mode | FCL, LCL, BULK, RORO | Fixed dropdown list configured in the application. |
| Buying Freight | buying_freight | PREPAID, COLLECT, OTHER | Fixed dropdown list configured in the application. |
| Selling Freight | selling_freight | PREPAID, COLLECT, OTHER | Fixed dropdown list configured in the application. |
| Service Term | svc_term_origin | CY, CFS, DOOR | Fixed dropdown list configured in the application. |
| Service Term | svc_term_dest | CY, CFS, DOOR | Fixed dropdown list configured in the application. |
| Port of Loading | port_of_loading | Lookup — see Data Source | Location lookup — UN/LOCODE database (GET /api/locations). Type at least 2 characters to search by city name or LOCODE code. |
| Cargo Type | cargo_type | GENERAL CARGO, DANGEROUS GOODS, REFRIGERATED, BREAK BULK, OVERSIZED, VEHICLES | Fixed dropdown list configured in the application. |
| Sales Type | sales_type | EXPORT, IMPORT, CROSS TRADE, DOMESTIC | Fixed dropdown list configured in the application. |
| Freight Type | freight_type | PREPAID, COLLECT | Fixed dropdown list configured in the application. |
| Reason for Cancel | reason_for_cancel | CUSTOMER REQUEST, DUPLICATE, AMENDMENT, OTHER | Fixed dropdown list configured in the application. |
| Type/Size | container_size | 20GP, 40GP, 40HC, 45HC, 20RF, 40RF | Fixed list — container equipment codes per ISO standards. |
